Tianyi GSE aircraft deicing vehicle

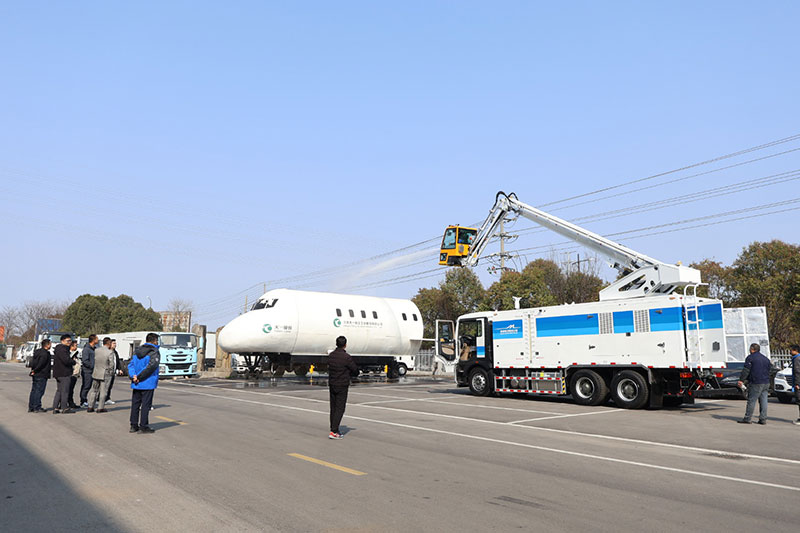

JSTY9600I aircraft deicing vehicle is a new type of aircraft deicing developed by Jiangsu Tianyi Aviation Industry Co., LTD. It mainly carries out deicing operations for aircraft. This type of deicing vehicle is a hot type. The vehicle is constructed by adding an operation traveling system, an elevated operation system, a deicing fluid tank, an engine, a heater, a deicing fluid pump, deicing pipelines, an anti-icing fluid pump, anti-icing pipelines, an electrical control system, a wired intercom system, lighting and alarm systems on the basis of a second-class vehicle chassis. The driver's cabin can accommodate 2 people. The driving mode is 6X4. The volume of the deicing fluid tank is 7800 L, the volume of the anti-icing fluid tank is 1800 L, the maximum deicing spray flow rate is 230 L/min, the maximum anti-icing spray flow rate is 100 L/min, the maximum operation height is 14.7 m, the maximum operation range is 12 m, and the maximum designed speed is 60 km/h. Main performance indicators of the aircraft deicing vehicle Chassis: ZZ1257N464GF1 Engine on the vehicle: B3.9CS4 150C Maximum working height of the working cabin (mm): 18000 Rated working load of the working cabin (kg): 160 Deicing fluid tank (L): 7800 Anti-icing fluid tank (L): 1800 Heating method: Instant heating Heating time (min): < 3 Maximum temperature of the deicing liquid at the nozzle outlet (℃): 85 Lifting speed of the working cabin (m/s): 0.2 Working pressure of the ejector (Mpa): 1.4/0.5 Maximum flow rate of the ejector (L/min): 230 (deicing) / 100 (anti-icing) Overall dimensions (length × width × height) (mm): 11100 × 2500 × 3800 Overall weight (kg): 18370 Chassis engine: MC07H.35-60
