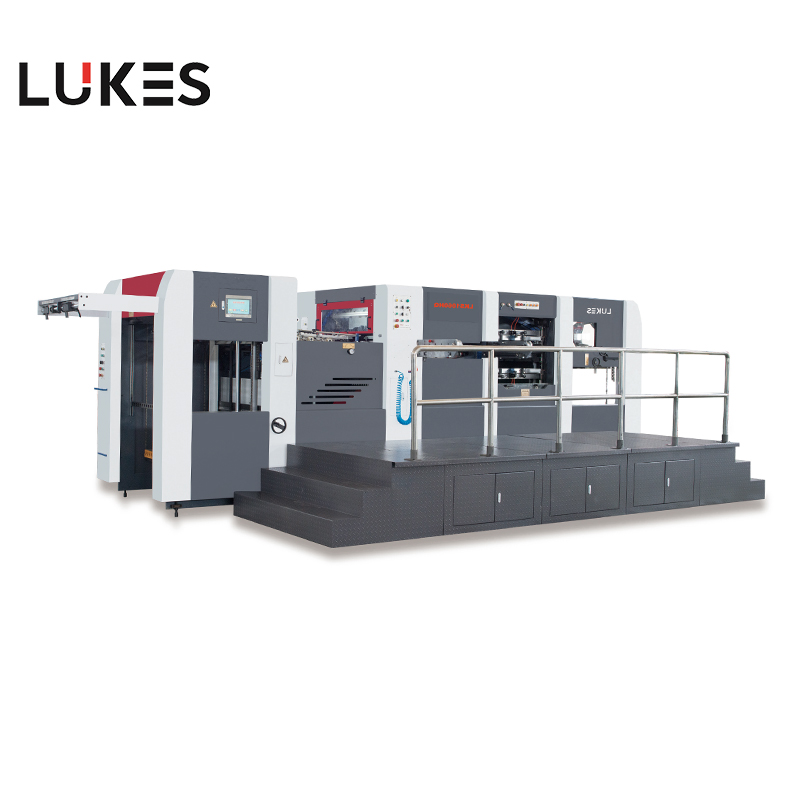

Description: LKS1060H(Q) is a high speed automatic die cutting machine with stripping, which is a hot selling product.
1060H(Q) automatic die-cutting machine is mainly composed of 5 parts: Feed section, Feed table, Die cutting section, Stripping section, Delivery section.
Advantage:
Feed section:
· Adopts enlarge feeder system with 9 suctions nozzle( 4pcs suction and 5 sending) applicable for paper in different thickness..
· By the special secondary paper feeding and preliminary paper stacking, the primary and secondary can be shifted to ensure uninterrupted paper feeding.

Feed table:
· Adopt pull and push lay. It can meet different print registration and ensure accurate side positioning.
· One key lifting button can easily adjust wheel frame.
· Centre line system reduce time of installation die.

Die cutting section:
· Die frame can be micro adjustment by front and back direction.
· Pneumatic lock system for die chase frame and handle locked the plate to ensure 100% safety and fastness locked.

Stripping section:
Adopts 3 frames stripping structure ( upper /middle and lower ) to ensure install stripping plate easily.
· Center line system can ensure fast set up and change over stripping plate to be high working efficiency, this device also can install stripping plate at outside.

Delivery section:
· Motorized upper frame suspending hoister.
· With automatic auxiliary delivery belt table can realize non-stop delivery , Maximum pile height up to 1400mm.

Parameters: "Max.paper size: 1070*770mm, Min.paper size: 380*340mm, Max. cutting size: 1040*750mm, Min. gripper edge: 8mm, Max. pressure: 580T, Max. mechanical speed: 7000s/ h, Stock range: paper 90-2000g/corrugated ≤4mm, Die cutting precision: ±0.12mm, Total weight: 12T, Total Power: 24KW, Dimension: 6700*4100*2350mm.”
LKS1060H(Q) This model is mostly used for cutting cardboard.
In 2019, we have sold this model to the UK, Russia, Slovenia and other countries. Lukes Machinery has over twenty years of experience in the die-cutting and hot stamping machinery industry. We are able to produce high quality automatic die cutting machines at competitive prices. And we have technical research and development personnel and after-sales service team.
