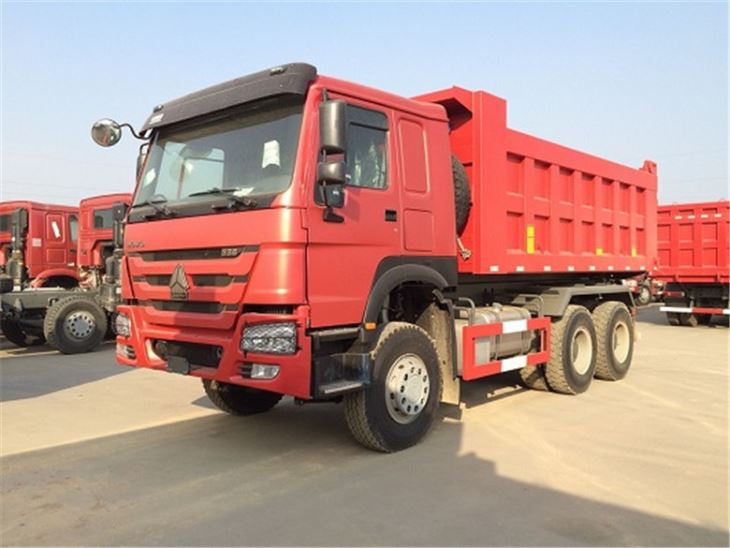

Product Name:HOWO Dump Truck
Product Description:
SINOTRUK BRANDHOWO DUMP TRUCK ? ? ? ? ? ? Driving Type 6×4ModelZZ3257N3647A,ZZ3257N3447A, ZZ3257N3647BEngineMake:SINOTRUKEngine model: : WD615.47, Euro II emission standard4 stroke direct injection diesel engine6 cylinder in-line with water cooling, turbo-charging & intercoolingMaximum output: 371hp(273Kw) at 2200 rpm according to DINDisplacement: 9.726L; ?Compression ratio: 17：1Specific fuel consumption: 195g/kWh; ?Engine oil filling quantity: 23LTwin cylinder air compressor Rigid fanOption: ?Thermostat with 71 oC opening beginClutchSingle- plate dry diaphragm spring clutch, diameter 430mm, hydraulically operating with air ? ?assistanceGear BoxGear box, model HW19710, 10 forward and 2 reverseOption:HW19710T, ?HW20716ShaftDouble universal joint propeller shaft with gear-shaped ***** flangeFront AxleHF9,9 TONSRear AxlesHC 16,16 TONSRatio: 5.73 Option: 4.80 5.45 4.77 6.5ChassisFrame: U-profile parallel ladder type with section of 300×80×8 mm, all cold riveted cross? members and reinforced subframeFront suspension: 10 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizerRear suspension: 12 semi-elliptic leaf springs with bogie spring and stabilizerWith one spare wheelFuel tank: with 300 L fuel tank with locking fuel capSteeringZF8118BrakesService brake: dual circuit compressed air brakeParking Brake(emergency brake): spring energy, compressed air operating on rear wheelsAuxiliary brake: engine exhaust brakeOption: ABSWheel & TypesRims: 8.5-20, 10 hole-steelTypes 12.00R20 ,Triangle BrandOption: 315/80R22.5Driver’s cabLong cab with two bedsElectricsOperating voltage:24V, negative grounded; ?Starter: 24V, 5.4KWAlternator: 28V, 1540W; ?Batteries: 2×12, 165AhCigar-lighter, horn, headlamp, fog light, reverse lampDimensions in mmWheel baseOverall DimensionBody size3625+13508145×2496×3386(mm)5400×2300×1500 (mm)Weight in kgPermissible loading capacity on chassisDead weightGross vehicle weightFront axle loading capacityRear axle loading capacity196201225032000900016000×2PerformanceMaximum driving speed(km/h)Maximum gradeablility (%)Minimum ground clearance(mm)Minimum turning circle(m)Fuel consumption(L/100km)75373141833
Price:20000.00
Product Website: http://www.truckcnhtc.com/truck/heavy-truck/howo-dump-truck.html
Company Description
CNHTC SINOTRUK
Address:SHANGHAISHANGHAISHANGHAICHANGNINGROOM1507,BUILDING NO.35,NO.579 XIANXIA ROAD,SHANGHAI,CHINA
Descption:SINOTRUK is the first heavy duty truck manufacturer, initially founded in 1956 and the cradle of China’s heavy duty truck industry. It once manufactured China’s first heavy duty truck – Huanghe branded JN150 8-ton truck in 1960; and successfully introduced the STEYR heavy duty truck project from Austria and became China’s first company to comprehensively introduce foreign heavy duty truck manufacturing technology of complete vehicle in 1983. SINOTRUK was formally established after the reform and restructuring in 2001 and, through more than 10 years’ development, has become a domestically and internationally renowned heavy duty truck R&D and manufacturing group. SINOTRUK became a publicly traded company in HKSE main board as a red chip in 2007, setting up a platform for international expansion. In 2009, SINOTRUK formed its strategic partnership with German MAN Group, by which Man held a 25%+1 stake in SINOTRUK (Hong Kong) Limited and SINOTRUK introduced 3 models (D20, D26 and D08) of engines, axles of middle and heavy trucks, and relevant technologies of complete vehicles from MAN, laying a solid foundation for corporate long-term growth. Today, SINOTRUK has developed into China’s largest heavy duty truck manufacturing base and made significant contribution to the development of China’s heavy duty truck industry and national economic growth.
Registered Capital:2000000
EmployeeNum:300
CNHTC SINOTRUK
Contact:CHARLES
Telphone:86-21-66031905
Fax:86-21-66031905
Email:[email protected]
Company Website: http://www.truckcnhtc.com
