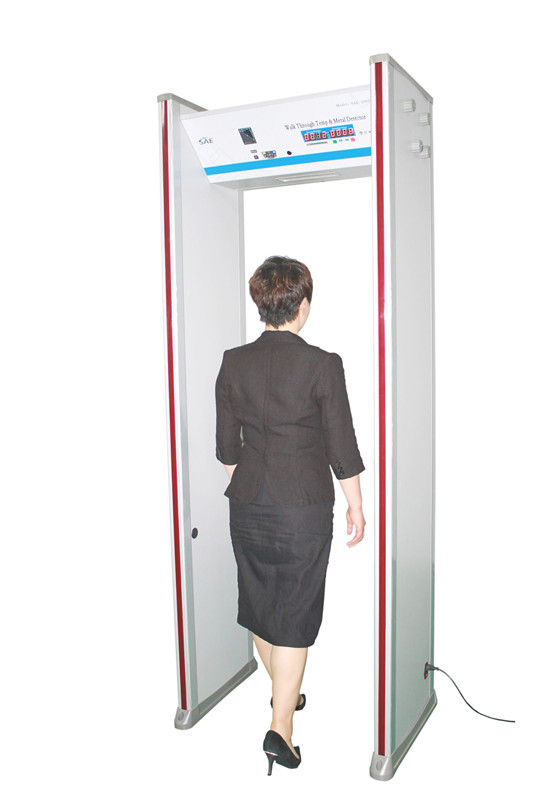

Product Name:Infrared thermal imaging temperature walk through metal detector
Product Description:
Infrared thermal imaging temperature walk through metal detector
Functions:
1. metal detection
2. temperature measurement

Target:
Under the new coronovirus-2019,temperature measurement is one of control ways to prevent the fever personnels to enter into the public areas.

Temperature measuurement equipment can be installed in any models of walk through metal detector.now take model no:AT-500A as an example:

Technical parameters of walk through metal detector
Model No:AT-500A
Vertical dimension:2210x810x605mm
Vertical tunnel dimension:2000x700mm
Net weight:70kgs
Gross weight:75kgs
Working voltage: AC90V~240V 50/60Hz
Power consumption: 10w
Signal frequency:7000-8999Hz(adjustable)
Location detection metal precision:Maximum sensitivity 4g metal

Main features of thermal imaging temperature:
Sensor: uncooled focal plane
Detection distance: 1-2m
Field angle: 30 ℃ of horizontal and vertical angle
Temperature range: 32 ℃-43 ℃
Accuracy: under 0.4 ℃
Scoreboard: 0.10 ℃
Response time of temperature measurement: 1s
Thermal imaging pixel: 160 * 120
Display stage rate: 320 * 240
Continuous use time: 8 hours
Applicable ambient temperature: 15 ℃ to 35 ℃
Applicable ambient humidity: 90% RH (0 cooling reduction)

if any need,pls contact us without hesitation

Best regards
Price:950.00
Product Website: http://www.chinesedetector.com/walk-through-metal-detector/indoor-walk-through-metal-detector/4-zones-door-frame-metal-detector.html
