Product Name:Precision Spot Welder battery spot welder cell spot welding machine
Product Description:

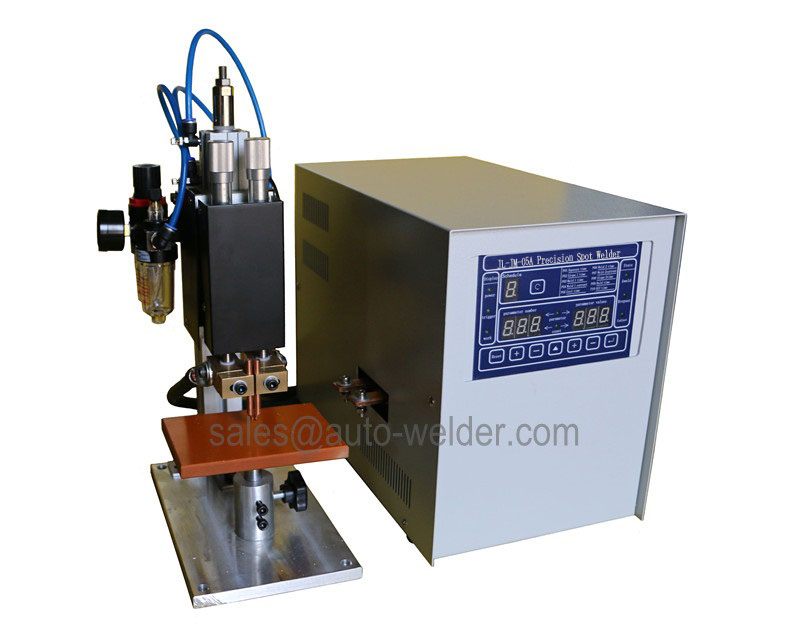

JM-05A Precision Spot Welding Machine
Main Features:
1.Precision Spot Welding Machine is composed of precision spot welding power source and precision spot welding head, precision spot welding power source also can be used to work with other automation equipment;
2.With two stages current discharge control and current slow rise and slow drop function, can effectively reduce the welding spatter, improve the quality of welding;
3.Equipped microcomputer control system, can be stored 9 sets of welding specification for the user choosing;
4.According to welding requirements, optional single side double point type welding head or a single side single point type welding head;
5.Widely used in sheet metal, wire precision spot welding, such as batteries, fuses, filament, conductive terminals, instrument precision welding .

Main Technical Parameters
Rated Voltage AC 220V
Power Frequency 50Hz
Input Power 5KVA
Current Output 2000A
Time Adjustment 0~250(cycle)
Current Adjustment 0%~99.9%
Start Input 2 Paths (Double pedal switch available )
Solenoid Valve Output 1Path :DC 24V
Dimension 200X300X400(mm)
Weight 30kg
Price:10.00
Product Website: http://www.dragon-welding.com/spot-welder/spot-welding-machine/precision-spot-welder.html
Company Description
Guangzhou Dragon Welding Co.,Limited
Address:GuangdongGuangdongGuangzhouNanshaKaili Industrial Zone, No.389, Guangzhu Road, Dagang Street, Nansha District, Guangzhou, China
Descption:More than 10 years welding experience.
GUANGZHOU DRAGON WELDING CO.,LIMITED is a professional automatic welding equipment manufacturer, which specializes in designing, producing,sale and service together.
Our Products include Spot Welders,Butt Welders,Flash Butt Welders,Seam Welders,Medium Frequency Inverter DC Welders,Wire Mesh Welding Machines,Sink Producing Line,Automatic Argon Arc Seam Welding Machines,Wire Bending Machines,Induction Heating Machines,and other automatic equipment.
