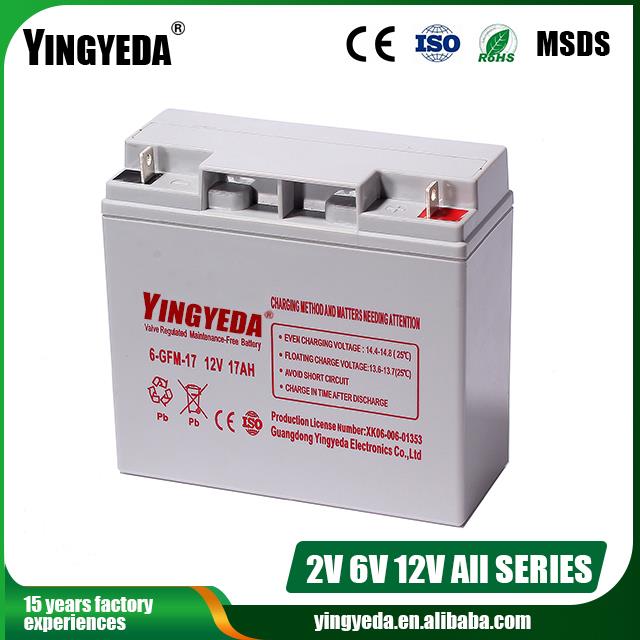

Product Name:VGM Battery
Product Description:

Features

1.Low self discharge characteristic

2.Non-Spillable construction design

3.Sealed and maintenance free operation

4.Safety valve installation for explosion proof

5.Exceptional deep discharge recovery performance

6.ABS containers and covers(UL94HB, UL94V-0) optional

?

Application:?

1.??Solar and wind energy storage system? 2.??EPS and UPS battery backup

3.??Signal system , emergency lighting system , security system

4.??Telecommunication Equipment? 5.??Power plant and transmission system

?

Nominal Voltage
12 V

Capacity (25℃)
4AH---250AH

Internal resistance (Fully charged, 25℃)
Approx. 6.5mΩ

Capacity affected by temperature (10HR)
40℃
102%

25℃
100%

0℃
85%

-15℃
65%

Self-discharge (25℃)
3 month
Remaining Capacity: 91%

6 month
Remaining Capacity: 82%

12 month
Remaining Capacity: 65%

Nominal operating temperature
25℃±3℃(77℉±5℉)

Operating temperature range
Discharge
-15℃～50℃(5℉～122℉)

Charge
-10℃～50℃(14℉～122℉)

Storage
-20℃～50℃(-4℉～122℉)

?Float charging voltage(25℃)
13.50 to 13.80V Temperature compensation:-18mV/℃

?Cyclic charging voltage(25℃)
14.50 to 14.90V Temperature compensation:-30mV/℃

Maximum charging current
16.5A

Terminal material
Copper

Maximum discharge current
550A(5 sec.)

Designed floating life(20℃)
12 years

?

Price:10.00
